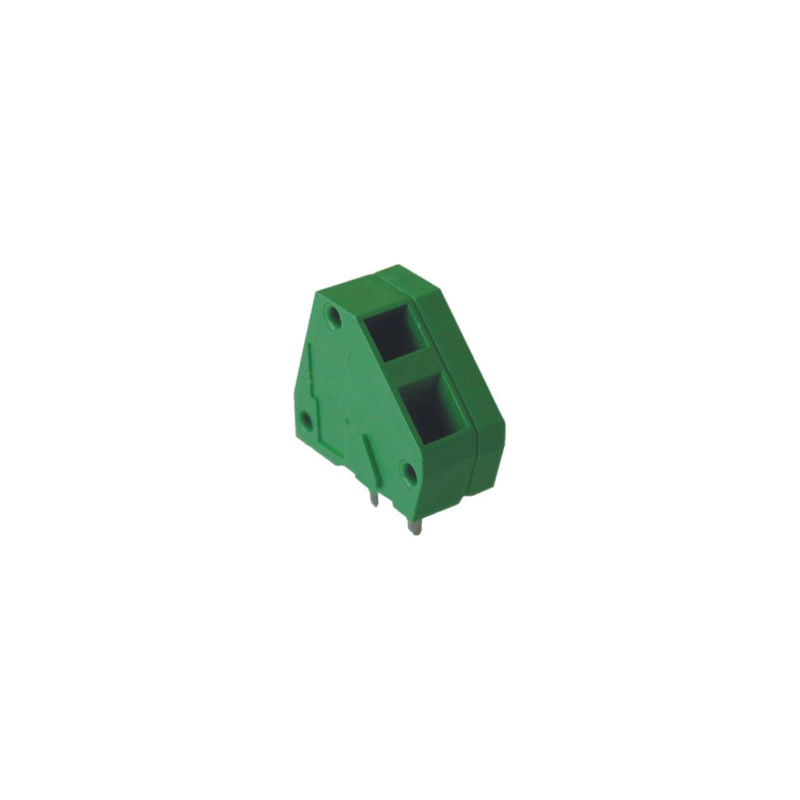

5.08mm Spring Clamp Screwless PCB Terminal Block

5.08mm Spring Clamp Screwless PCB Terminal Block

• 5.08mm Pitch Screwless PCB Terminal Block
• 1-20 Pole with Modular construction
• 16 Amp Current rating
• Moulded in Green UL94-V0 flame retardant PA.
• SpringClamp Terminal
• Single, Double, Triple and Quad level Variants
• Guided pin alignment
• CE approved
• Alternative colours available upon request

No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Colour Amperage Materials (Body) Cable Size, Flexible (mm2) Cable Size, Solid (mm2) Voltage Pitch Materials (Terminals) Operating Temperature Poles Price
MG111-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 10 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 11
MG120-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 20 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 20
MG119-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 18 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 19
MG118-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 17 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 18
MG117-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 16 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 17
MG116-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 15 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 16
MG115-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 14 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 15
MG114-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 13 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 14
MG113-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 12 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 13
MG112-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 11 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 12
MG101-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 1 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 1
MG110-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 9 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 10
MG109-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 8 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 9
MG108-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 7 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 8
MG107-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 6 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 7
MG106-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 5 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 6
MG105-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 4 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 5
MG104-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 3 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 4
MG103-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 2 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 3
MG102-5.08 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 1 POLE Green 16 AMP PA - UL 94 V0 1.5 1.5 150V 5.08mm Tin-plated copper alloy -40 to +130℃ 2
