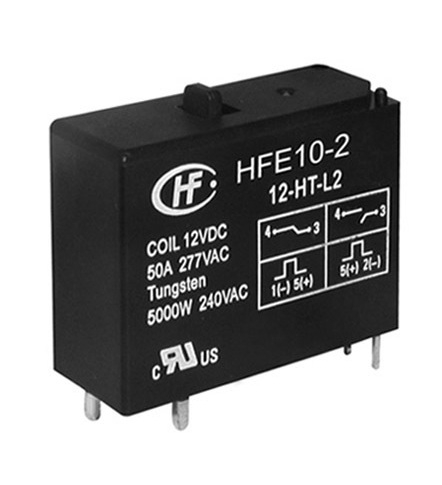

Single Coil Latching

Descriptions

50A 250VAC contact switching capacity

Lamp load up to 5000W

Form C contact as standard

Capacitor load up to 200uF (min inrush current at 500A/10us)

4Kv dielectric strength between coil and contacts

Creepage distance 8mm

Standard and reverse polarity types available

Manual switch option

Contact material AgSn02

Wash tight available for the HFE101

RoHS compliant

Approvals UL & CUR

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Contact Arrangement	Coil Voltage	Coil Power	Max VDC	Maximum Rated Switching Current	Coil ? � 10%	Set/Reset Voltage VDC Max	Pulse Duration ms min.	Price
HFE103006ZSTL1	HONGFA LATCHING RELAY 6VDC 50A PCB HFE10-3/006-ZST-L1	1C - Single Pole Changeover	6VDC	1500mW	7.8	50AMP	24 x (1�10%)	4.8	50	Please login to see prices.
HFE103009ZSTL1	HONGFA LATCHING RELAY 9VDC 50A PCB HFE10-3/009-ZST-L1	1C - Single Pole Changeover	9VDC	1500mW	11.7	50AMP	54 x (1�10%)	7.2	50	Please login to see prices.
HFE103012ZSTL1	HONGFA LATCHING RELAY 12VDC 50A PCB HFE10-3/012-ZST-L1	1C - Single Pole Changeover	12VDC	1500mW	15.6	50AMP	96 x (1�10%)	9.6	50	Please login to see prices.
HFE103024ZSTL1	HONGFA LATCHING RELAY 24VDC 50A PCB HFE10-3/024-ZST-L1	1C - Single Pole Changeover	24VDC	1500mW	31.2	50AMP	384 x (1�10%)	19.2	50	Please login to see prices.
HFE103048ZSTL1	HONGFA LATCHING RELAY 48VDC 50A PCB HFE10-3/048-ZST-L1	1C - Single Pole Changeover	48VDC	1500mW	62.4	50AMP	1536 x (1�10%)	38.4	50	Please login to see prices.
