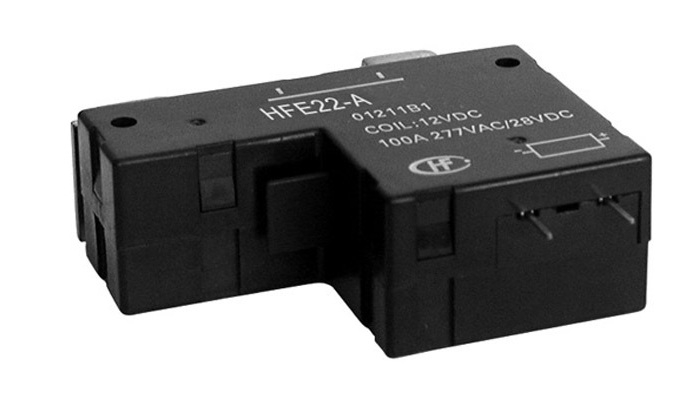

Double Coil Latching

Double Coil Latching

100A 277Vac/28VDC contact switching capability

4Kv dielectric strength between coil and contacts

Heavy load up to 27.7kVA

1 Form A contact

Micro switch auxiliary also available

Contact material AgSn02

RoHS compliant

Approvals UL & CUR

PCB Terminals, solder Tag also available

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Pulse Duration ms min. Price
HFE22A006H1T21 HONGFA LATCHING RELAY 6VDC 100A 1NO HFE22-A/006-H1T21 1A - Single Pole Normally Open 6VDC 4800mW 100AMP 4.8 8 + 8 x (1�10%) 100
HFE22A012H1T21 HONGFA LATCHING RELAY 12VDC 100A 1NO HFE22-A/012-H1T21 1A - Single Pole Normally Open 12VDC 4800mW 100AMP 9.6 30 + 30 x (1�10%) 100
HFE22A024H1T21 HONGFA LATCHING RELAY 24VDC 100A 1NO HFE22-A/24-H1T21 1A - Single Pole Normally Open 24VDC 4800mW 100AMP 19.2 125 + 125 x (1�10%) 100
HFE22A048H1T21 HONGFA LATCHING RELAY 48VDC 100A 1NO HFE22-A/48-H1T21 1A - Single Pole Normally Open 48VDC 4800mW 100AMP 38.4 500 + 500 x (1�10%) 100
